Shipping Container Dimensions
Discover the versatility of our shipping container sizes, uses and applications.
Shipping Container Dimension
Container Type
Size
External Dimensions
Internal Dimensions
Tare Weight (empty)
Max Gross Weight
Pay Load (full)
Volume
General Purpose
Containers
Containers
5ft
5ft x 8ft x 8.6ft (1524 mm x
2438.4 mm x 2621.28 mm)
2438.4 mm x 2621.28 mm)
4ft x 7ft x 7ft (1,219mm x
2,133mm x 2,133mm)
2,133mm x 2,133mm)
1,300 lbs (500kg)
3,300 lbs (1,497 kg)
4,600lbs (1,997kg)
177 ft³
6ft
6ft x 6.4ft x 6.3ft (1,828.8mm x
1,951mm x 1,920mm)
1,951mm x 1,920mm)
5.9ft x 6.1ft x 5.7ft (1,798 mm x
1,859mm x 1,737mm)
1,859mm x 1,737mm)
1,852lbs (840kg)
4,000 lbs ( 1,814.37kg)
5,852lbs(2,654.37kg)
181ft³
7ft
7ft x 7.2ft x 7.4ft (2,135mm x
2,200mm x 2,260mm)
2,200mm x 2,260mm)
6.73ft x 7.05ft x 7.35ft (2,050mm x
2,150mm x 2,240mm)
2,150mm x 2,240mm)
2,094lbs (950 kg)
5,000lbs (2,268 kg)
7,094lbs (3,218kg)
348ft³
8ft
8ft x 7.2ft x 7.4ft (2,438mm x
2,194mm x 2,255mm)
2,194mm x 2,255mm)
7.5ft x 6.9ft x 6.7ft (2,286mm x
2,103mm x 2,042mm)
2,103mm x 2,042mm)
2,094lbs (950 kg)
5,510 lbs (2,500 kg)
7,604lbs (3,450kg)
350ft³
9ft
9ft x7.2ft x 7.5ft (2,743 mm x
2,194mm x 2,286mm)
2,194mm x 2,286mm)
8.6ft x 6.11ft x 6.9ft (2,621mm x
1,862mm x 2,103mm)
1,862mm x 2,103mm)
2,249lbs (1,020kg)
5,890lbs (2,672 kg)
8,139lbs (2,672 kg)
460ft³
10ft
10ft x 8ft x 8.6ft (3,048mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
9.3ft x 7.5ft x 7.8ft (2,834mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
2,866lbs (1,300kg)
6,170lbs (2,800kg)
9,036lbs (4,100kg)
558ft³
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
19.5ft x 7.5ft x 7.8ft (5,944mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
4,740lbs (2,150kg)
48,167lbs (21,850kg)
52,907lbs (23,992kg)
1,155ft³
40ft
40ft x 8ft x 8.6ft (12,192 mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
39.4ft x 7.5ft x 7.8ft (12,009mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
8,245lbs (3,740kg)
58,935lbs (26,740kg)
67,180lbs (30,465 kg)
2,345ft³
Flatrack containers
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
19.5ft x 7.5ft x 7.8ft (5,944mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
4,740lbs (2,150kg)
48,167lbs (21,850kg)
52,907lbs (23,992kg)
1,155ft³
40ft
40ft x 8ft x 8.6ft (12,192 mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
39.4ft x 7.5ft x 7.8ft (12,009mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
8,245lbs (3,740kg)
58,935lbs (26,740kg)
67,180lbs (30,465 kg)
2,345ft³
High Cube containers
20ft
20ft x 8ft x 9ft (6,058mm x
2,438mm x 2,896mm)
2,438mm x 2,896mm)
19.4ft x 7.8ft x 8.10ft (5,900mm x
2,452mm x 2698mm)
2,452mm x 2698mm)
5,291lbs (2,400kg)
48,167lbs (21,592kg)
52,907lbs (23,992kg)
1318ft³
40ft
40ft x 8ft x 9ft (12,192 mm x
2,438mm x 2,896mm)
2,438mm x 2,896mm)
39.6ft x 7.9ft x 8.10ft (12,070mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
8,245lbs (3,740kg)
58,935lbs (26,740kg)
67,180lbs (30,465 kg)
2,345ft³
Multidoors
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
19.5ft x 7.5ft x 7.8ft (5,944mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
4,740lbs (2,150kg)
48,167lbs (21,850kg)
52,907lbs (23,992kg)
1,155ft³
40ft
40ft x 8ft x 8.6ft (12,192 mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
39.4ft x 7.5ft x 7.8ft (12,009mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
8,245lbs (3,740kg)
58,935lbs (26,740kg)
67,180lbs (30,465 kg)
2,345ft³
Offshore containers
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
19.5ft x 7.5ft x 7.8ft (5,944mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
4,740lbs (2,150kg)
48,167lbs (21,850kg)
52,907lbs (23,992kg)
1,155ft³
40ft
40ft x 8ft x 8.6ft (12,192 mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
39.4ft x 7.5ft x 7.8ft (12,009mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
8,245lbs (3,740kg)
58,935lbs (26,740kg)
67,180lbs (30,465 kg)
2,345ft³
Openside containers
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
19.5ft x 7.5ft x 7.8ft (5,944mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
4,740lbs (2,150kg)
48,167lbs (21,850kg)
52,907lbs (23,992kg)
1,155ft³
40ft
40ft x 8ft x 8.6ft (12,192 mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
39.4ft x 7.5ft x 7.8ft (12,009mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
8,245lbs (3,740kg)
58,935lbs (26,740kg)
67,180lbs (30,465 kg)
2,345ft³
Open top containers
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
19.5ft x 7.5ft x 7.8ft (5,944mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
4,740lbs (2,150kg)
48,167lbs (21,850kg)
52,907lbs (23,992kg)
1,155ft³
40ft
40ft x 8ft x 8.6ft (12,192 mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
39.4ft x 7.5ft x 7.8ft (12,009mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
8,245lbs (3,740kg)
58,935lbs (26,740kg)
67,180lbs (30,465 kg)
2,345ft³
Platform containers
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
19.5ft x 7.5ft x 7.8ft (5,944mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
4,740lbs (2,150kg)
48,167lbs (21,850kg)
52,907lbs (23,992kg)
1,155ft³
40ft
40ft x 8ft x 8.6ft (12,192 mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
39.4ft x 7.5ft x 7.8ft (12,009mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
8,245lbs (3,740kg)
58,935lbs (26,740kg)
67,180lbs (30,465 kg)
2,345ft³
Refrigerated containers
10ft
10ft x 8ft x 8.6ft (3,048mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
9.3ft x 7.5ft x 7.8ft (2,834mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
2,866lbs (1,300kg)
6,170lbs (2,800kg)
9,036lbs (4,100kg)
558ft³
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
19.5ft x 7.5ft x 7.8ft (5,944mm x
2,286mm x 2,377mm)
2,286mm x 2,377mm)
4,740lbs (2,150kg)
48,167lbs (21,850kg)
52,907lbs (23,992kg)
1,155ft³
40ft
ISO Tanks
20ft
20ft x8ft x 8.6ft ( 6,096 mm ×
2,438.4 mm × 2,621.28 mm)
2,438.4 mm × 2,621.28 mm)
19.36ft x 7.71ft x 7.84ft (5,900 mm ×
2,350 mm × 2,390 mm)
2,350 mm × 2,390 mm)
8,443 lbs (3,830kg)
58,757 (26,646kg)
67,200 lbs (30,480kg)
1,172ft³
40ft
Type
Capacity
Gross Weight
Tare Weight
Payload
Max Cargo Temp
Test Pressure
Working Pressure
ISO Tanks
21,000l
36,000kg
3,650kg
32,350kg
120⁰C
6.00 BAR
4.00 BAR
24,000l
36,000kg
3,900kg
32,100kg
120⁰C
6.00 BAR
4.00 BAR
25,000l
36,000kg
3,730kg
32,270kg
120⁰C
6.00 BAR
4.00 BAR
26,000l
36,000kg
4,060kg
31,940kg
120⁰C
6.00 BAR
4.00 BAR
Site Accommodation Dimensions
Container Type
Size
External dimensions
Weight
Canteen
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
4,740lbs (2,150kg)
40ft
40ft x 8ft x 8.6ft (12,192 mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
8,245lbs (3,740kg)
Combination Units
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
4,740lbs (2,150kg)
Drying Room
10ft
10ft x 8ft x 8.6ft (3,048mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
2,866lbs (1,300kg)
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
4,740lbs (2,150kg)
Offices
10ft
10ft x 8ft x 8.6ft (3,048mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
2,866lbs (1,300kg)
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
4,740lbs (2,150kg)
Shower Blocks
10ft
10ft x 8ft x 8.6ft (3,048mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
2,866lbs (1,300kg)
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
4,740lbs (2,150kg)
Sleeper Cabins
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
4,740lbs (2,150kg)
Toilet Blocks
5ft
3.94ft × 4.59ft × 8.37ft (1200 mm ×
1400 mm × 2550 mm)
1400 mm × 2550 mm)
10ft
10ft x 8ft x 8.6ft (3,048mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
2,866lbs (1,300kg)
20ft
20ft x 8ft x 8.6ft (6,096mm x
2,438mm x 2,621mm)
2,438mm x 2,621mm)
4,740lbs (2,150kg)
Effluent Tanks
10ft
10.42ft × 8ft × 2.26ft (3,177mm x
2,434mm x 690mm)
2,434mm x 690mm)
1,565lbs (710kg)
20ft
20.51ft x 8ft x 2.26ft (6,250mm x
2,435mm x 690mm)
2,435mm x 690mm)
2425lbs (1,100kg)
Welfare Units
Container Type
Size
External dimensions
Weight
12ft
12ft
11. 81ft x 7.5ft x 4.92ft (3600mm x
2300mm x 1500mm)
2300mm x 1500mm)
3,307lbs (1500kg)
25ft
25ft
24.99 ft × 9.04 ft × 8.20 ft (7620mm x
2755mm x 2500mm)
2755mm x 2500mm)
10,582lbs (4800kg)
Shipping Container Materials
Our shipping containers, also known as steel storage containers or freight containers, include a single set of double doors and a hook to secure the doors using a CISA padlock, that you can also purchase from us. As standard, our containers come in dark blue or the more popular dark green, but these can either be resprayed or factory ordered with any colour to your branding or preference.
Shipping Container Compliance Standards
Our containers meet rigorous industry standards, including:
DNV 2.7-1: Offshore container design, construction, and testing
EN 12079: Construction, testing, and marking for offshore use
ISO 1161: Corner fittings for series 1 freight containers
CSC certification (on select models): International convention for safe containers
Shipping Container Range
Shipping Containers 40ft
Available from 5ft to 40ft. Ideal for storing site equipment or creating more space in domestic settings.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
Shipping Containers 30ft
Available from 5ft to 40ft. Ideal for storing site equipment or creating more space in domestic settings.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
Shipping Containers 20ft
Available from 5ft to 45ft. Ideal for storing site equipment or creating more space in domestic settings.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
Shipping Containers 10ft
Available from 5ft to 40ft. Ideal for storing site equipment or creating more space in domestic settings.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
Shipping Containers 9ft
Available from 5ft to 40ft. Ideal for storing site equipment or creating more space in domestic settings.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
Shipping Containers 8ft
Available from 5ft to 40ft. Ideal for storing site equipment or creating more space in domestic settings.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
Shipping Containers 7ft
Available from 5ft to 40ft. Ideal for storing site equipment or creating more space in domestic settings.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
Shipping Containers 6ft
Available from 5ft to 40ft. Ideal for storing site equipment or creating more space in domestic settings.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
Shipping Containers 5ft
Available from 5ft to 40ft. Ideal for storing site equipment or creating more space in domestic settings.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
.webp)
Multidoor Containers
Multidoors are the ideal solution to adding revenue streams to self-storage sites with limited space.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
.webp)
Tunnel Containers
Tunnel containers have doors at both ends, making accessing of stock quicker and easier.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
.webp)
Shipping Containers (5ft to 40ft)
Available from 5ft to 40ft. Ideal for storing site equipment or creating more space in domestic settings.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
Platform Containers
ISO platform containers are frequently used to oversized cargo and machinery.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
Open Top Containers
Open top containers are often associated with the shipping of large structures and scrap metal.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
Refrigerated Containers
We supply refrigerated containers all year round, from all our main container yards.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
High Cube Containers
Available from 10ft to 40ft. Ideal for storing site equipment or creating more space in domestic settings.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
Open Side Containers
Available in 20' and 40' sizes. These side opening containers allow for full side access.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
Flatrack Containers
Flatrack Containers are popular with the shipping lines, Willbox can sell or lease flat racks nationwide.
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
Offshore Containers
All of our offshore containers are fully certified to DNV 2.7-1 standard
- Storing goods, equipment, tools, or personal belongings.
- Used as recycling or waste collection stations in public areas.
More Than Hire & Sales
Topper Containers
Discover what a topper container is and how it can help you maximise space in self-storage sites, construction projects, and modular builds.
.webp)
Site Accommodation Hire
Willbox offers premium site accommodation for hire. Choose from a range of containers & cabins, tailored for your needs. Secure, comfortable & adaptable.
-min.webp)
Finance Options and Calculator
Willbox offers flexible finance for containers - hire, buy, or rent-to-own. Fixed terms available. Use our finance calculator and find the right option today.
.webp)
Container Painting & Respraying
Customise your container with expert painting & respraying from Willbox. Match your brand or site. Nationwide delivery. Get a quote today.
Bespoke Containers
Willbox creates bespoke shipping container conversions for offices, retail, homes & more. Fully customised to your needs. Start your container project today.
Energy
Willbox supplies custom container solutions for the energy sector - ideal for housing generators, labs, battery systems & more. Speak to our team today.
Construction
Willbox supplies durable containers for construction sites - offices, welfare units, drying rooms & more. Fast UK delivery. Get a quote for your project today.

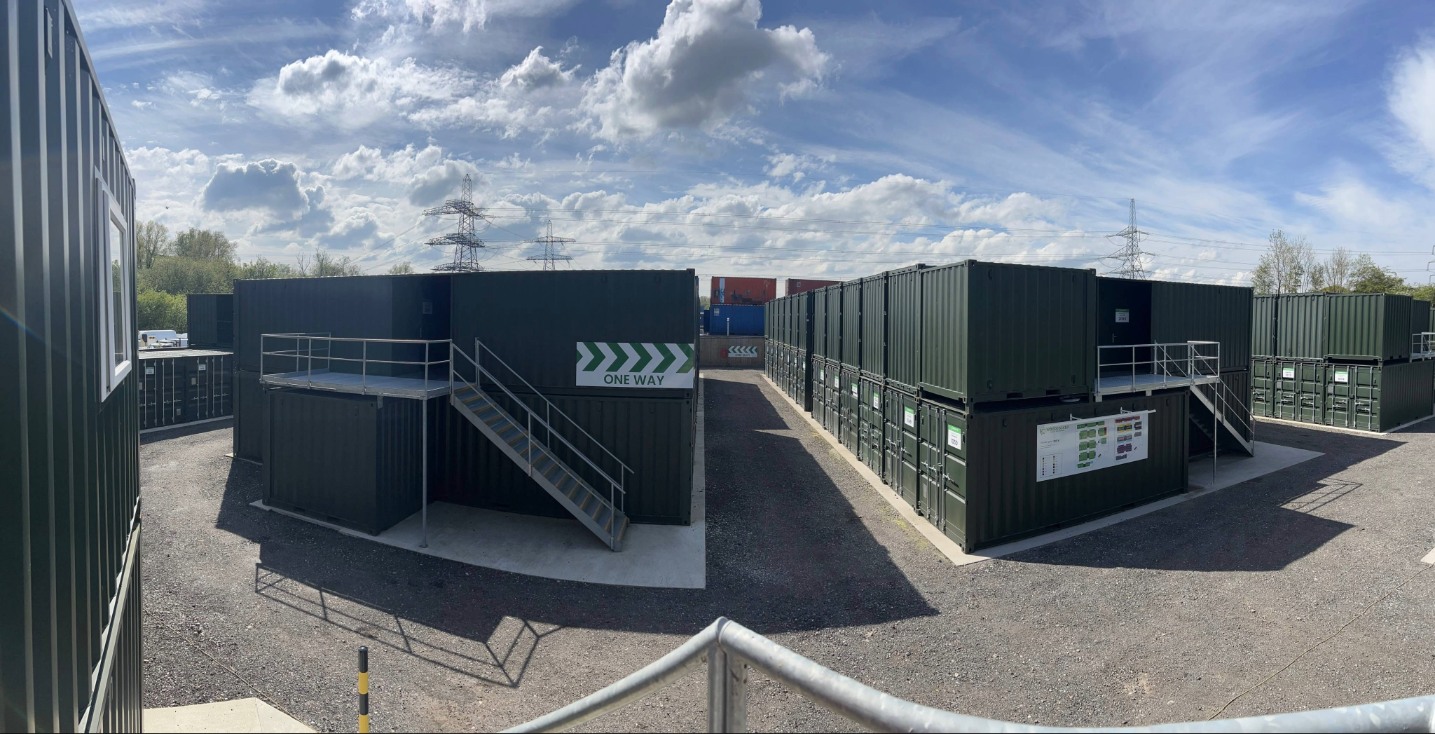

Self Storage
Container storage sites are becoming more and more popular with the UK.. WILLBOX® are the UK's leading supplier of new and used shipping containers, container conversions and site accommodation with nationwide delivery. We specialise in container sale, container hire and the customisation of storage containers. We provide a complete range of services and consultancy for those looking to set up or expand self storage facilities.
Industrial, Retail & Parks
Willbox converts containers into cost-effective units for cafés, food stands, or retail use on industrial sites. Custom builds UK-wide. Enquire today.
Defence
Willbox supplies container conversions for defence use - modular, durable, and deployable units for bases, storage, comms, and more. Enquire about your project today.
Revenue Calculator
Use the Willbox revenue calculator to estimate your self storage site’s earning potential. Enter your site size and region to get started instantly.
Consultancy
Whether it be setting up a new self-storage site, container brokerage, logistics or designing a new bespoke container conversion our team will be on hand to offer help.. WILLBOX® are the UK's leading supplier of new and used shipping containers, container conversions and site accommodation with nationwide delivery. We specialise in container sale, container hire and the customisation of storage containers. We provide a complete range of services and consultancy for those looking to set up or expand self storage facilities.
Competitor Analysis
Willbox offers expert competitor analysis to help your self storage site stand out. Gain an edge with market insights and strategic support. Start today.
.webp)
Aerial Site Surveys
Willbox offers aerial drone surveys for self storage and construction sites. Get detailed insights with minimal disruption. Book your drone survey today.
Topographical Surveys
Willbox offers topographical surveys to support accurate site planning and avoid costly errors. Ideal for container site design. Book a survey today.
Site Layout design
Willbox offers CAD layouts, overlays & drone surveys to help design efficient self storage sites. Maximise space and revenue - start planning with us today.
Brokerage
Willbox sources bulk and custom containers via a trusted global network. Choose colours, branding, and specs. Expert advice and fast UK delivery - enquire now.
Container Tracking
Track your WBXU container with the Willbox tracking tool. Quick, easy, and reliable for trade buyers across the UK. Check your container’s status now.
Container Stacking
Maximise space on-site with Willbox stackable container units. Safe, secure and quick to install - ideal for compact construction sites. Enquire today.
Sell your used Cabin or Container to us
Sell your used container or cabin to Willbox. Fair same-day valuations, nationwide collection, and fast payment. Upload your details and get started today.
.webp)
Container Repair & Maintenance
Willbox offers expert container repairs and maintenance - fast, reliable service from our in-house team. Keep your units secure and compliant. Enquire today.
CSC Plating
Need your container CSC plated for sea freight? Willbox surveyors inspect and certify containers for global transport. Book your plating or IICL6 survey today.
.webp)
Container Transport
Willbox offers expert container transport across the UK - hiab crane delivery, secure handling, and fast service. Speak to our team for a quote today.
.webp)
Site Storage Overview
Set up or expand your self storage business with expert consultancy from Willbox. From planning to container supply - get started with the UK's trusted partner.
Conversions Overview
Willbox are UK pioneers in converting shipping containers into custom buildings. From single to multi-units, we offer expert container conversions. Contact us today!
%20(1).png){kind=logo}
.webp)
Shipping Container
Solutions from Willbox
With over 25 years of experience, Willbox is a trusted provider of container and cabin solutions throughout the UK. As part of Williams Shipping Holdings Ltd., Willbox offers a wide range of container sizes - from new to custom-sized options - that meet diverse needs in storage, transportation, and business expansion. Designed to withstand the elements and retain long-term value, Willbox containers are a smart investment for any application.Whether you’re looking to buy or hire, we deliver quality containers tailored to your specifications. Contact Willbox today to find the perfect shipping container size for your unique requirements.
Full UK Coverage
Operating from 22 depots nationwide, Willbox ensures fast, efficient service wherever you are in the UK. Find a depot near you.
Have Questions? Let’s Talk!
We’re here to help with all your queries, quotes, and custom requests.
